Alien Hydroponics RDWC 40 Pot System

Alien Hydroponics RDWC - 40 Pot 4 Row

Are you looking to scale up your commercial operation with a professional hydroponic system that delivers consistent, explosive growth? The Alien Hydroponics RDWC 40 Pot 4 Row Kit is engineered for large-scale facilities, providing industrial-grade performance with unparalleled efficiency.

This complete system is designed to meet the demands of licensed producers and research facilities, delivering a super-oxygenated nutrient solution directly to the root zone. This advanced approach to deep water culture creates the perfect environment for rapid, healthy development and massive yields. Its unique design, featuring oversized fittings, actively prevents common issues like root clogging and oxygen deficiency that can hinder growth in other systems.

Flexibility is built-in, with options for 5-gallon (20L) or 9.5-gallon (36L) pots and configurations for compact or remote headers, allowing you to tailor the layout to your exact space. Thanks to a tool-free, no-glue assembly, setup is remarkably fast, minimizing downtime and letting you focus on cultivation. This system is part of a larger family of RDWC hydroponic systems, with smaller configurations like the 24 Pot 4 Row system also available.

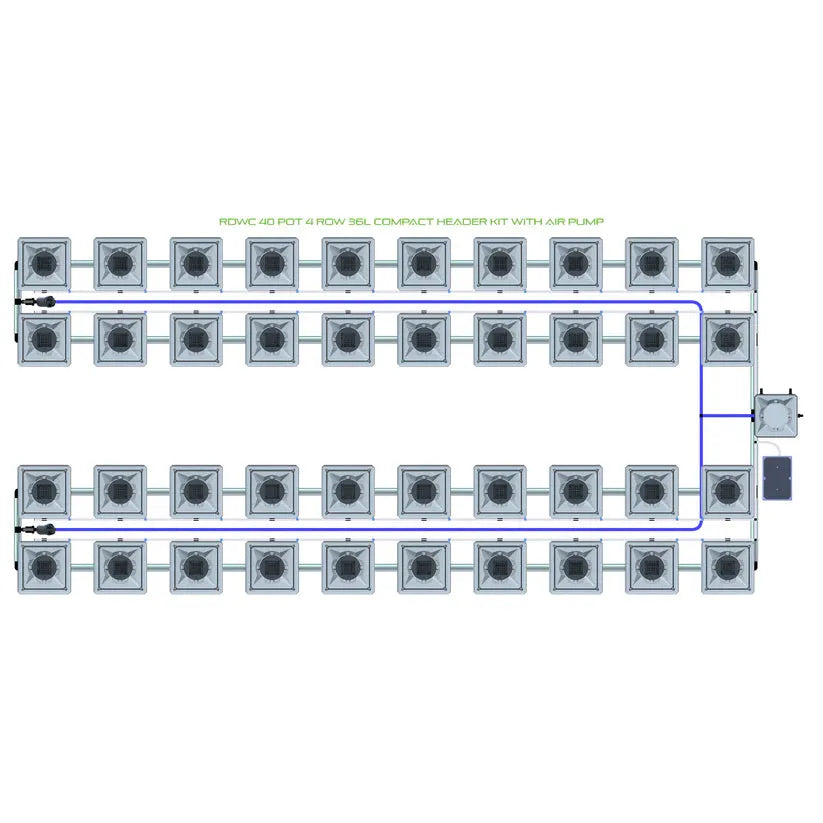

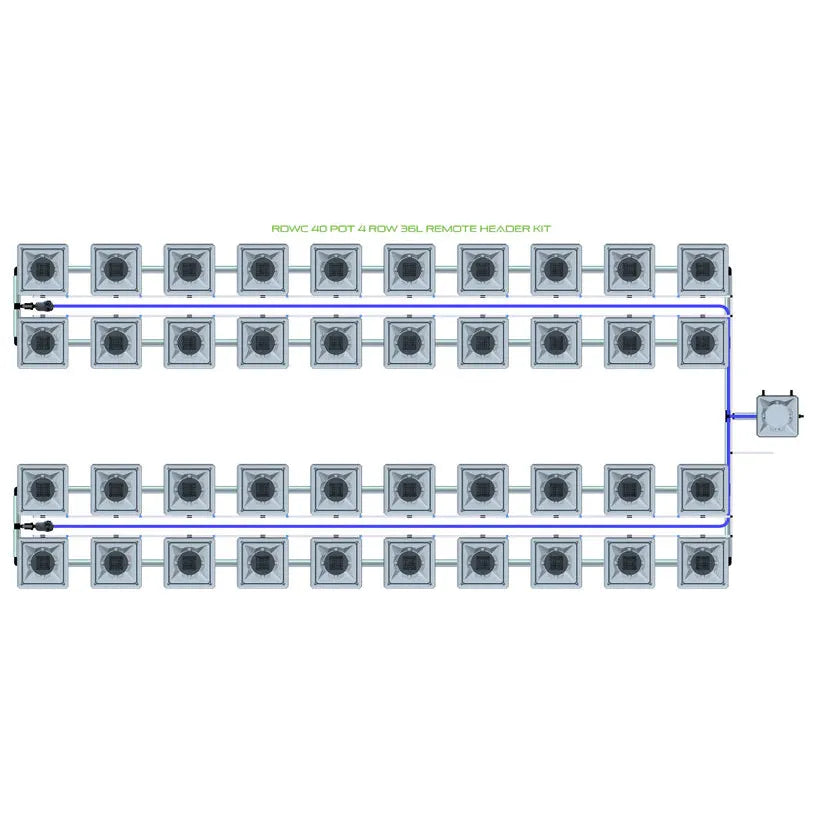

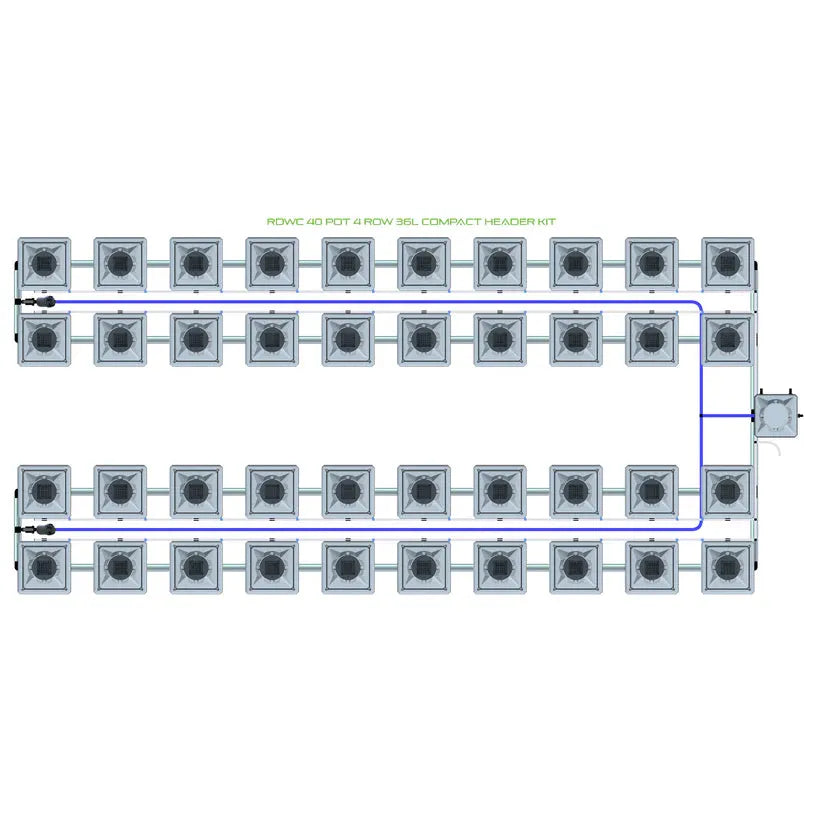

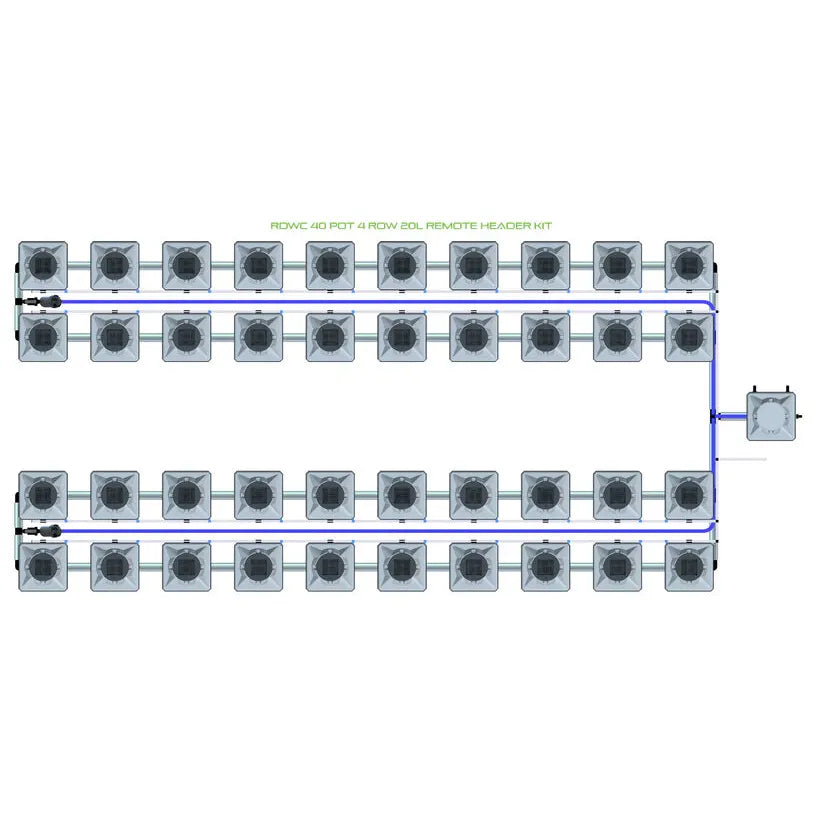

Alien Hydroponics RDWC - 40 Pot 4 Row complete system setup

What's Included

1x RDWC Header Pot Complete
40x RDWC Pot 20L
41x Silver Lid
1x Header Pot Blank
40x Square Net Pot
40x Air Injection Ring
6x Elbow 50mm Dual Flow
72x 50mm Straight Dual Flow
3x Tee 50mm Dual Flow
81x Washer 50 X 64mm
81x Nut 50mm Dual Flow
2x RDWC Tee, Ball Valve and Filter
3x Tee 16mm Barbed
4x Plug - 16mm
2x Elbow 16mm Barbed
40x Tee 16mm - 6mm Blue
40x Pot Clip 16mm
1x RDWC Instructions
1x Tee 19mm Barbed
28x Pipe 6mm Blue Bulk by Meter
29x Pipe 16mm Silver Bulk by Meter
14x Pipe 19mm Blue Bulk by Meter
2x Pipe 50mm Silver 100cm Piece
23x Pipe 50mm Silver 66cm Piece
1x Wrench 50mm

Features

The ALIEN Hydroponics RDWC system delivers a super-oxygenated nutrient solution, pushing incredible growth rates and remarkable yields while minimizing effort. Designed for faster vegetative growth, the RDWC 40 Pot 4 Row Kit ensures plants develop stronger, healthier roots in less time. With uniform pH and EC stability, nutrient uptake is consistent while mitigating fluctuations that stunt growth.

🚀

Accelerated Growth & Yields

Delivers oxygenated nutrients directly to roots, reducing vegetative time for faster, larger harvests.

🌊

Enhanced Flow Fittings

Features oversized 2" Dual-Flow™ fittings that minimize root blockage for consistent nutrient delivery.

🔧

Flexible & Scalable Design

Modular system adapts to various grow sizes, allowing for easy customization and expansion.

💧

Efficient Nutrient Management

Requires minimal medium and uses a recirculating solution, reducing setup and operational costs.

💨

Superior Oxygenation

JET-STREAM A.I.R.™ rings provide constant, high-pressure oxygen for explosive root development.

✅

Easy Setup & Maintenance

Threaded fittings and snap-on pipes allow for a glue-free setup and simple reconfiguration.

🛡️

Durable & Cool Construction

Heat-reflective silver polymer maintains cooler solution temperatures, while quality materials ensure longevity.

⚙️

Customizable Configurations

Offers numerous preconfigured kits and custom options to maximize your growing space.

Setup and Maintenance

System Setup Steps:

1. Prepare Pots

Attach the necessary fittings to the pots.

2. Connect the System

Use piping to connect the pots and the header pot to establish the recirculating network.

3. Install Air System

Set up the air pump and connect it to the air stones in the pots.

4. Integrate Pumps

Install the water pump(s) for recirculation and chilling (if applicable).

5. Set Up Nutrient Tank

Connect the nutrient tank to the system.

6. Fill the System

Add water to the system.

Maintenance Tips:

Maintain water temperature between 18-20°C (64-68°F).
Add nutrients to the system and allow for recirculation before testing and adjusting.
When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space with substrate.
Fill the system using a hose, ensuring the correct level before turning on the pump.
Drain the system as needed by connecting a pipe to the designated fitting.
Use preventative solutions to maintain root health and system cleanliness.

Specifications

Specification	20L	36L
Number of pots	40	40
Number of rows	4	4
Kit total fluid volume	173.3 gallons / 656 liters	308.6 gallons / 1168 liters
Minimum Assembled Size (Compact Header)	155½" (L) x 66½" (W)	190½" (L) x 79⅛" (W)
Maximum Assembled Size (Compact Header)	240½" (L) x 123⅝" (W)	296⅞" (L) x 144½" (W)
Minimum Assembled Size (Remote Header)	159½" (L) x 66½" (W)	194½" (L) x 79⅛" (W)
Maximum Assembled Size (Remote Header)	279⅞" (L) x 123⅝" (W)	336¼" (L) x 144½" (W)
Water Pump Included	700 GPH, 70 Watts	700 GPH, 70 Watts
Air Pump Option (With)	105.7 gal/min (400 L/min), 220 watts
Air Pump Option (Without)	Requires pump capable of 105.7 gal/min (400 L/min)

Support & Manuals

📄User Manual

Warranty

The Alien Hydroponics RDWC system comes with a one-year warranty for your peace of mind.

Compare Alien Hydroponics Systems

Feature	V-System	RDWC	Other RDWC Systems
Oxygenation method	Venturi	JET-STREAM A.I.R.™ rings	Air stones (prone to clogging)
Set up without gluing	✔	✔	✘
Pot shape	Round	Square	Rectangular
Customizable pot / plant spacing	✔	✔	✘
Remote Header Option (up to 39")	✔	✔	✘
Does not require an air pump	✔	✘	✘
Patent-pending Dual-Flow™ fittings	✔	✔	✘
Silver reflective polymer construction	✔	✔	✘
Easily-cleanable nutrient solution filters	✔	✔	✘
Float valve for automatic top-off	✔	✔	✘
Vortex maximizing nutrient/O2 distribution	✔	✘	✘
Fresh nutrient distribution to every pot	✔	✘	✘
Complete drainage possible	✔	Almost	✘
External pump to minimize heat	✔	✘	✘
Plants can be rotated in pots	1°-360°	90°, 180°, 270°	180° only
Pot sizes available	15.3 gallon (58L)	5 gallon (20L), 9.5 gallon (36L)	13 gallon or smaller
Recirculation line diameter	5"	2"	2-3" or smaller
Kit configurations available	54	183	1 - 16

FAQs

Who is the RDWC 40 Pot system designed for?+

This system is specifically engineered for large-scale commercial growers, licensed producers (LPs), and research facilities that require a robust, high-capacity hydroponic setup for consistent, high-yield production.

What makes the Dual-Flow™ fittings special?+

The patent-pending Dual-Flow™ fittings are oversized to 2 inches and feature unique slots that dramatically reduce the chance of roots clogging the system. This ensures a constant, uninterrupted flow of nutrient solution to every plant.

How does this system manage nutrient solution temperature?+

The pots and piping are made from a heat-reflective silver polymer. This material helps to reflect radiant heat away from the system, keeping the nutrient solution cooler and maintaining a healthier root environment.

Is an air pump included with this kit?+

You have the option to purchase the kit with or without a compatible air pump. If you choose the 'Without Air Pump' option, you must supply your own pump capable of delivering at least 105.7 gallons (400 liters) of air per minute to properly oxygenate the system.

What is the main difference between the RDWC and the V-System?+

The primary difference is the oxygenation method. The RDWC system uses JET-STREAM A.I.R.™ rings and an air pump to deliver oxygen. The Alien V-System uses a venturi effect created by the water pump, which draws air into the solution without needing a separate air pump. The V-System also features a larger 5-inch recirculation line.

How difficult is the assembly process?+

Assembly is designed to be straightforward. The system features threaded fittings and snap-on pipes, which means no glue is required. This tool-free design allows for quick setup, breakdown, and easy reconfiguration of your layout.
