TotalGrow UCL 160 Under Canopy Lighting

Sale Price:
Or
Pay as little as
$31900/mo
for a term that suits you, up to 36 months. Learn More

🍃 Earn 319 points for shopping and get $3.19 off your next order. Join Harvest Club for free

To calculate 10 percent of a number, simply divide it by 10 or move the decimal point one place to the left. For example, 10 percent of 230 is 230 divided by 10, or 23.
pricePoints: 319
319,0
1
percentage: $3.19
rt:

🍃 Earn # points for shopping and get $3.19 off your next order. Join Harvest Club for free

MODEL: TG16B4-1pk
Need help deciding?

Expert (human) help, just a click away!

About TotalGrow UCL 160 Under Canopy Lighting

Full Spectrum

Type

164W

Power

Coverage

5 Years

Warranty

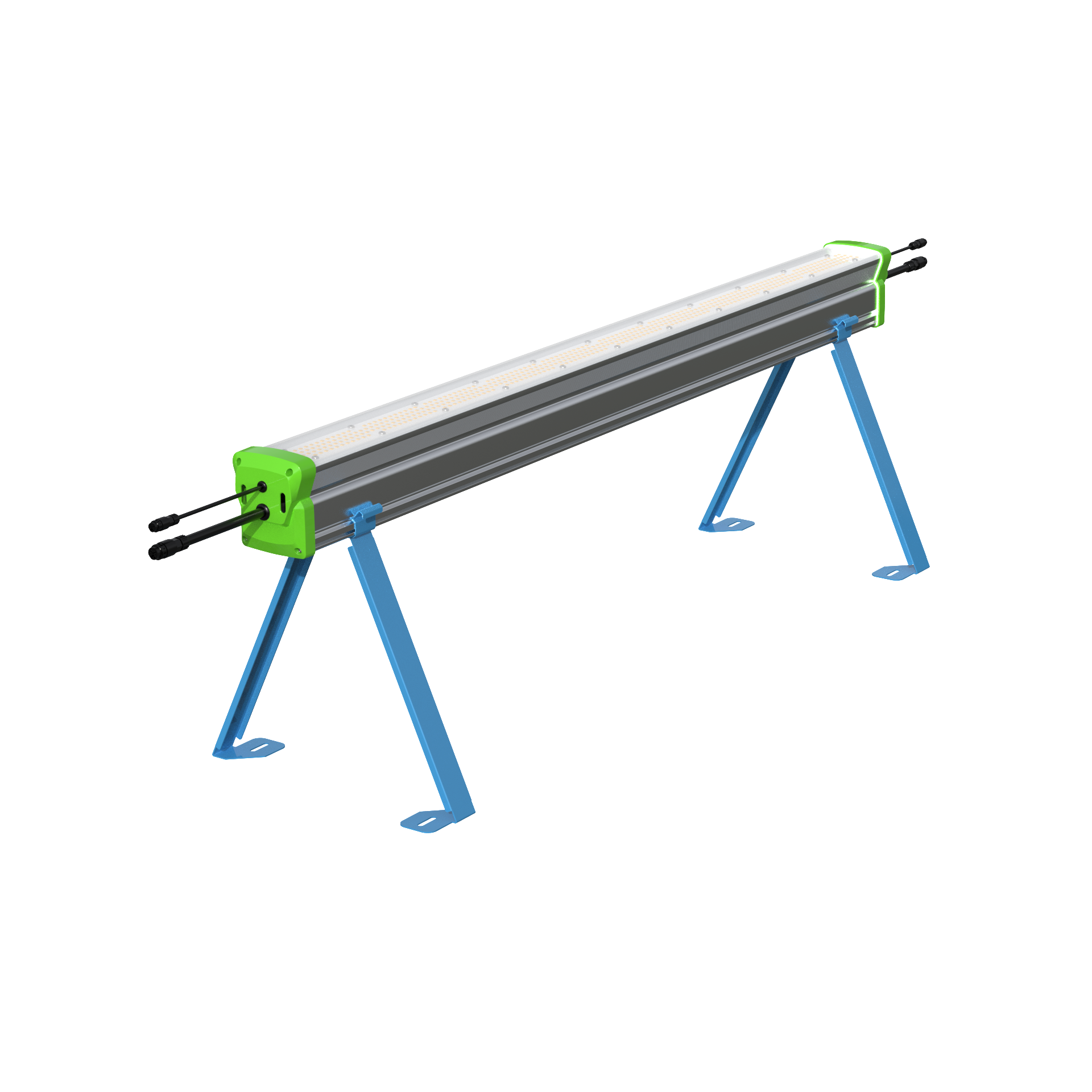

TotalGrow UCL 160 Under Canopy Lighting w/ Stand

Struggling with underdeveloped lower buds and poor yields from the bottom half of your plants?

The TotalGrow UCL 160 under canopy Lighting system addresses the common challenge of light deprivation in lower canopy layers, helping you maximize production throughout the entire plant structure, not just the top.

Ideal for commercial growers and serious cultivators seeking to increase overall yields without expanding their growing footprint.

This specialized lighting solution delivers 490 µmol/s of high-efficiency light with an impressive 3.0 µmol/J efficacy, focusing on the high-red full spectrum that's optimized for penetrating dense canopies and promoting lower bud development. The strategic light placement ensures even the lowest branches receive adequate photons for robust flowering.

Installation is straightforward with the 44-inch light bars that are designed specifically for undercanopy placement. The system allows for easy daisy-chaining of up to 10 units on 120V circuits (or 20 units on 240V), making it simple to cover rows of plants with consistent, productivity-boosting light.

Built with commercial durability in mind, the UCL 160 features an IP66 waterproof rating to withstand irrigation events and high humidity environments, along with a rugged construction that stands up to the rigors of daily cultivation operations. This reliability is backed by TotalGrow's comprehensive 5-year warranty.

Product Highlights

  • Maximizes yields from lower plant sections with targeted 160W undercanopy lighting
  • High-efficiency 3.0 µmol/J light output with 490 µmol/s optimized for lower canopy development
  • High-red spectrum designed specifically for penetrating dense foliage with minimal heat
  • Dimmable output for customizable intensity based on growth stage needs
  • IP66 waterproof rating with rugged construction for commercial growing environments

TotalGrow UCL 160 Undercanopy Lighting Features


TotalGrow UCL 160 showing high-red spectrum light penetrating lower plant sections
High-Red Spectrum Penetration

Specialized light spectrum maximizes photosynthesis in lower plant sections while minimizing excess heat generation.


TotalGrow UCL 160 showing easy daisy-chain installation between multiple units
Simple Daisy-Chain Installation

Connect up to 10 units on 120V or 20 on 240V for easy implementation across multiple rows.


TotalGrow UCL 160 showing IP66 waterproof construction withstanding irrigation
IP66 Waterproof Protection

Fully waterproof construction withstands irrigation events and high-humidity growing environments.


 TotalGrow UCL 160 showing rugged construction for commercial growing operations
Rugged Commercial Design

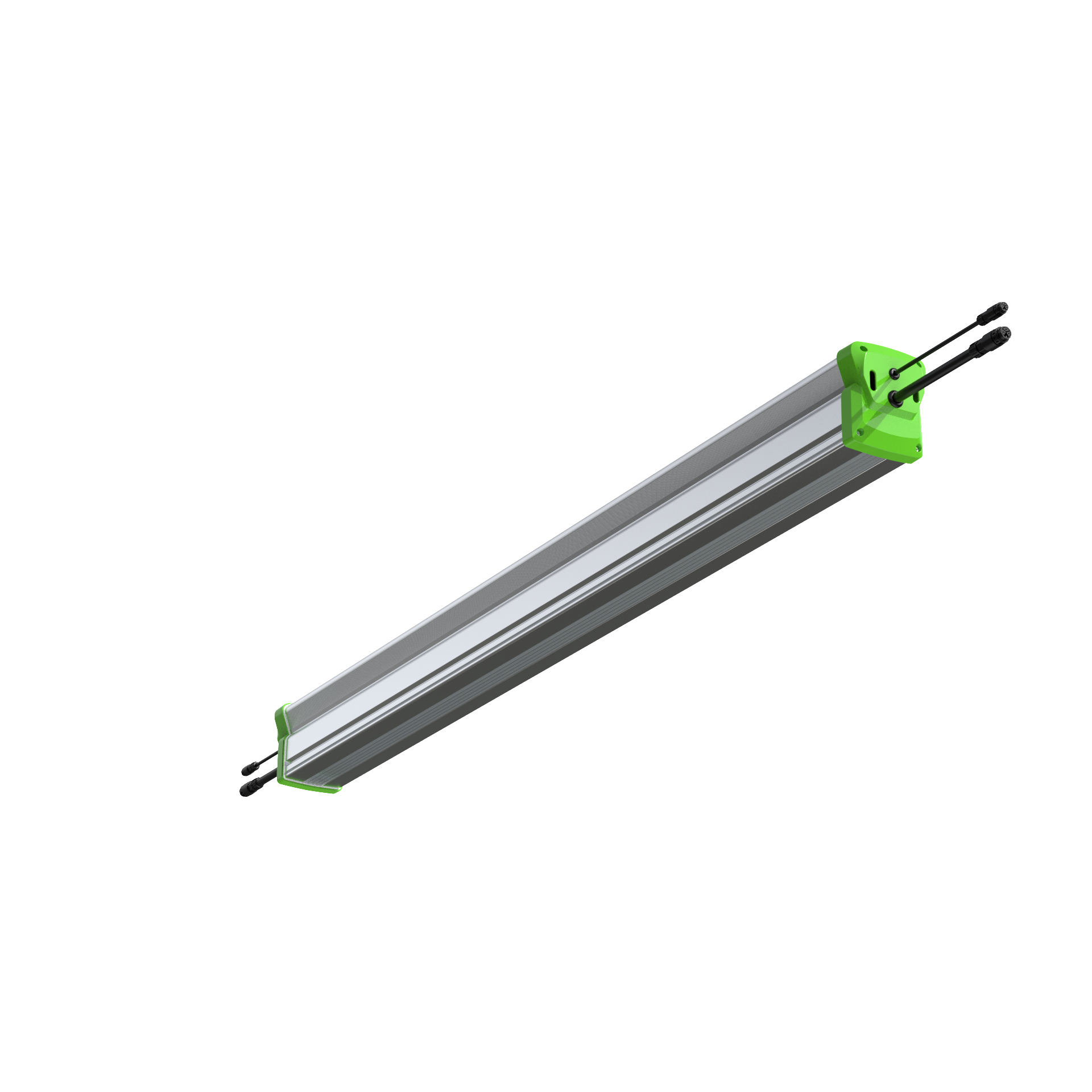

Sturdy 44-inch light bars designed specifically for under canopy placement in active growing environments.

TotalGrow UCL 160 Undercanopy Lighting Applications

The UCL 160 is specifically engineered to complement your existing top lighting system and overcome the limitations of traditional single-direction lighting approaches.

By implementing undercanopy lighting, growers can:

  • Increase overall yields by activating production in normally low-yielding plant sections
  • Improve flower consistency throughout the entire plant structure
  • Enhance lower bud density and quality for better grade distribution in your harvest
  • Maximize production efficiency without expanding growing footprint or canopy space

The system is particularly valuable in high-density commercial operations where maximizing yield per square foot is critical to profitability.

TotalGrow UCL 160 Undercanopy Lighting Installation Tips

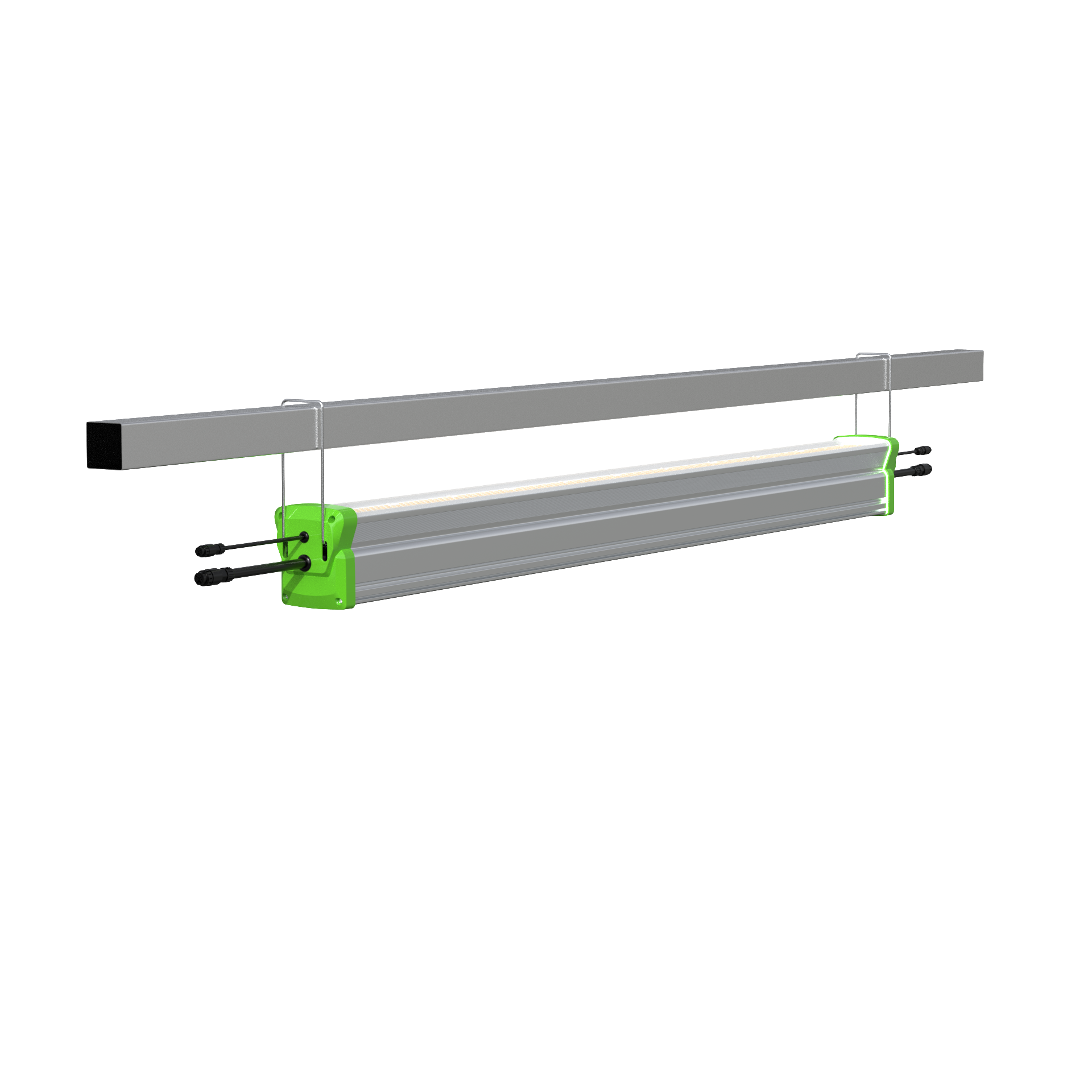

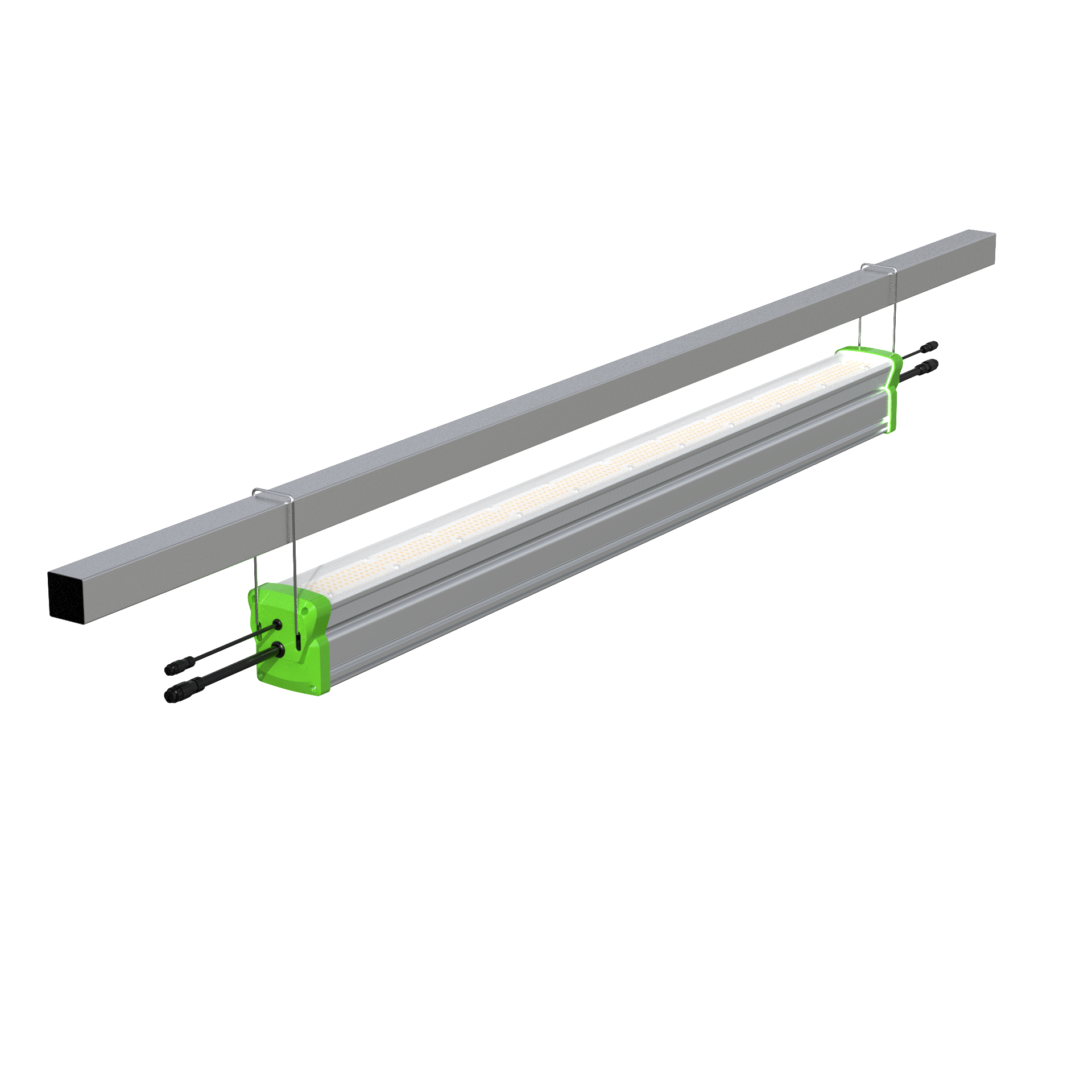

For optimal results, position UCL 160 light bars strategically within the lower third of your plant canopy. Mount bars horizontally along plant rows to ensure even light distribution to all lower branches.

The slim 4-inch width and 3-inch height profile allows for unobtrusive placement that won't interfere with normal cultivation operations or plant maintenance. At only 6 pounds per unit, the lightweight design makes installation and repositioning simple as plants grow.

For large installations, utilize the daisy-chaining capability to create a continuous lighting system while minimizing electrical connection points. The dimmable feature allows for precise light intensity adjustments based on plant growth stage and specific crop requirements.

TotalGrow UCL 160 Undercanopy Lighting Specifications

Specification Value
Product Number TG16B4-R0N-27-D1-T3UBC
Power Consumption 164W
Output 490 µmol/s
Efficacy 3.0 µmol/J
Dimensions (L x W x H) 44" x 4" x 3"
Weight 6 lbs.
Input Voltage 100-347V
Daisy-Chain Limit 10 units (120V) / 20 units (240V)
Projected Service Life 50,000 hours
Waterproof Rating IP66

TotalGrow UCL 160 Undercanopy Lighting Manuals

TotalGrow UCL 160 Undercanopy Lighting Warranty

The TotalGrow UCL 160 Undercanopy Lighting system is backed by a comprehensive 5-year manufacturer's warranty, providing long-term protection for your lighting investment. This warranty covers defects in materials and workmanship under normal growing operation conditions. For warranty service or technical support, contact the TotalGrow expert team through Trimleaf.
